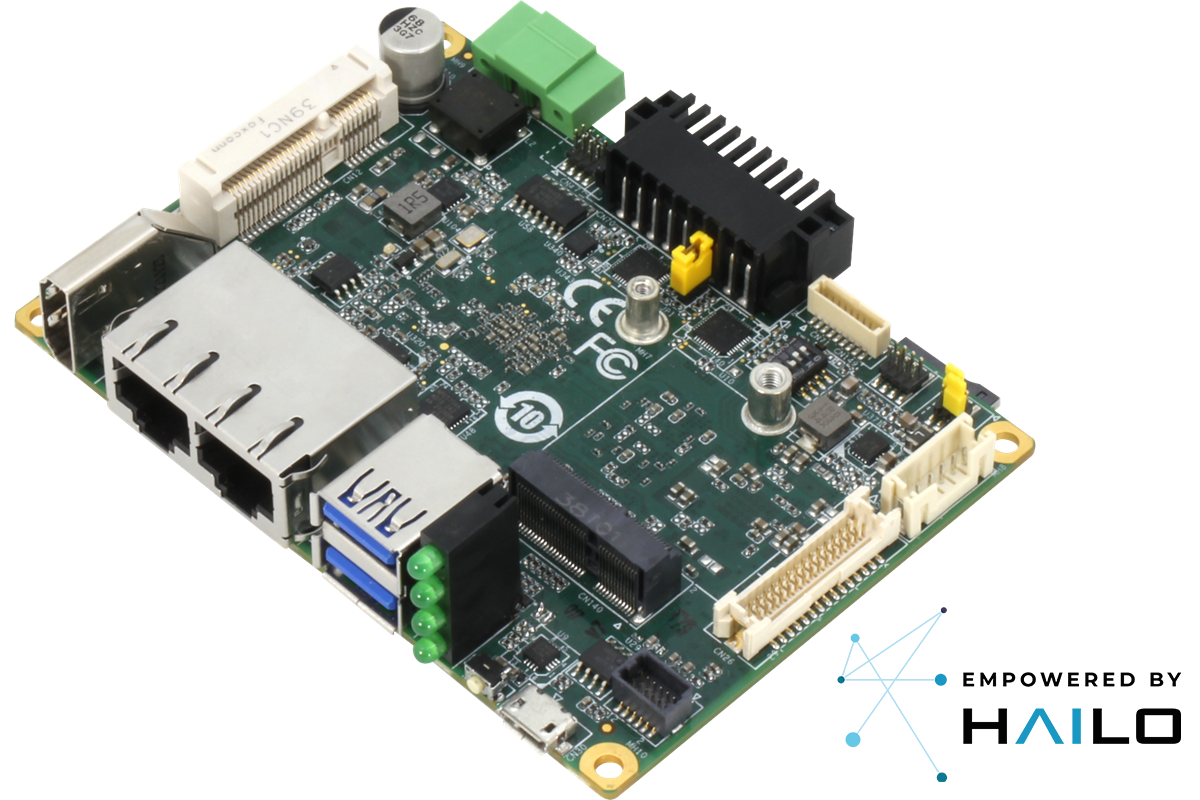

    PICO-IMX8PL

    Pico-ITX Board with ARM i.MX8M Plus Quad-Core Cortex-A53 1.6GHz Processor

    產品比較

    產品介紹

    Pico-ITX Board with ARM i.MX8M Plus Quad-Core Cortex-A53 1.6GHz Processor

    功能特性

    • ARM NXP i.MX8M Plus Quad-Core, Cortex-A53 1.6GHz
    • LPDDR4, up to 4 GB (8GB by customer request)
    • eMMC 5.1 x 1
    • HDMI 2.0 x 1 , LVDS x 1
    • GbE x 2
    • USB 3.0 Gen 1 x 2 , USB 2.0 x 1
    • M.2 2230 E Key x 1, Full-sized minicard x 1
    • COM x 2, CAN x 2, TPM 2.0 , GPIO x 8


    推薦產品

    SRG-IMX8PL

    Standard RISC Gateway with ARM i.MX8M Plus Quad-Core Cortex-A53 1.6GHz Processor

    更多介紹
    SRG-IMX8PL


    產品規格 [PICO-IMX8PL]

    system
    Form FactorPICO-ITX, 2.5" SBC
    processorARM NXP i.MX8M Plus Quad-Core Cortex-A53 1.6GHz Processor (Default w/NPU, optional w/o NPU)
    MemoryOnboard LPDDR4 up to 4GB
    StorageeMMC 5.1 16/32GB (Optional 64/128 GB)
    Micro SD Card slot x1
    Real Time ClockRTC x 1, with 3V CR2032H Lithium battery
    SecurityTPM 2.0 (optional)
    IndicatorProgrammable LED control x 3
    CellularFull Size Mini Card x 1 (USB signal)
    Wireless LanM.2 2230 E-key x 1 (USB, PCIe)
    Operating SystemDebian 11(Default, GUI is optional)
    Android 13
    Win 10 IoT
    Yocto
    Support ProtocolModbus, MQTT, OPCUA
    i/o interfaces
    Serial PortRS-232/422/485 switchable x 2, Phoenix Connector
    EthernetGigabit Ethernet x 2, RJ-45
    support IEEE 1588, TSN, integrated RGMII
    Audio I/OLine in / Line Out / Mic x 1 (optional)
    USBUSB 3.0 Gen1 x 2 (rear I/O)
    USB 2.0 x 1 (pin header)
    ADC
    DI/DO
    Can BusCAN-FD x 2 CH, Phoenix Connector
    Display I/OHDMI 2.0 x 1
    LVDS x 1, dual channel, 18/24bit
    Power Connector2 Pin 3.81mm Pitch Phoenix Connector
    Debug PortMicro USB x 1
    Expansion SlotM.2 2230 E-key x 1, support Wifi/BT module, etc
    Full Size Mini Card x 1, support 4G module, etc
    Other InterfaceGPIO x 8 (w/o TPM: include SPI x1, I2C x1, GPIO x2, w/TPM: I2C x1, GPIO x2)
    UART x 1 (optional w/o debug port)
    power supply
    Power RequirementDC 9-36V (Optional: 12V)
    Power Consumption9.36W (Full Loading)
    MTBF (hours)1,699,754 Hours
    environmental and mechanical
    Dimension3.94" x 2.84"(100mm x 72mm)
    Weight0.18 lbs (0.08 kg)
    Mounting
    Operating Temperature-40 °F ~ 176 °F (-40 °C ~ 80 °C) (Option: 0°C ~ 60°C)
    Storage Temperature-40 °F ~ 176 °F (-40 °C ~ 80 °C)
    Operating Humidity0% ~ 90% relative humidity, non-condensing
    CertificationCE/FCC Class A

    訂購資訊 [PICO-IMX8PL]

    Part NumberPICO-IMX8PL-A10-0001PICO-IMX8PL-A10-0002
    cpu ARM NXP i.MX8M Plus Quad-Core Cortex-A53 1.6GHz Processor ARM NXP i.MX8M Plus Quad-Core Cortex-A53 1.6GHz Processor
    npu 2.3 TOPs 2.3 TOPs
    memory Onboard LPDDR4 2GB Onboard LPDDR4 4GB
    display HDMI x 1 (rear I/O)
    LVDS x 1
    HDMI x 1 (rear I/O)
    LVDS x 1
    storage eMMC 16GB, MicroSD x1 eMMC 32GB, MicroSD x1
    lan GbE x 2 GbE x 2
    usb USB 3.0 Gen1 x 2 (rear I/O)
    USB 2.0 x 1 (pin header)
    USB 3.0 Gen1 x 2 (rear I/O)
    USB 2.0 x 1 (pin header)
    com RS232(4-wire)/422/485 x 2 (rear I/O) RS232(4-wire)/422/485 x 2 (rear I/O)
    expansion slot M.2 2230 E-key x 1 miniCard (Full) x 1 M.2 2230 E-key x 1 miniCard (Full) x 1
    power +12V (Lockable terminal block) + 9 ~36 V (Lockable terminal block)
    operation temp -40°C ~ 80°C -40°C ~ 80°C
    audio Line in / Line Out / Mic x 1
    others SPI x 1, I2C x 1,
    GPIO x 2
    CAN 2.0 FD x 2 (rear I/O)
    I2C x 1, GPIO x 2,
    TPM x 1
    CAN 2.0 FD x 2 (rear I/O)
    os Debian 11 Debian 11

    下載 [PICO-IMX8PL]

    • Datasheet

    包裝內容

    • PICO-IMX8PL x 1
    • 2pin 3.81mm Power Terminal block w/lock x 1
    • 18pin 2.54mm Phoenix plug in Connector/lock x 1

    選購配件

    Part Number Descroption
    9741EG25G0 "PCIe mini card. 4G LTE. module kit. Global Band W/ SIM holder. W/Cable & antenna. Quectel. EG25-G"
    9651882200 "M.2 2230 E key Wireless Kit.802.11 ac/a/b/g/n + BT 5.0.2T2R,Enli RTL-8822CE.w/2 sets of cable and antenna"
    PICO-IMX8PL-HSK01 PICO-IMX8PL Heat Sink.100*72*15.5mm.Silver.
    125530040D Power Adapter.DC.100-240V.12V.3.34A.40W.3P Phoenix P=3.81mm.
    170203180J POWER CORD.3P-250V 13A.1.8M.UK
    170X000799 POWER CORD.3P-125V 10A.1.8M.USA
    170X000800 POWER CORD.3P-250V 10A.1.8M.EU
    170X000806 POWER CORD.3P-125V 7A.1.8M.TWN
    170X000803 POWER CORD.3P-125V 7A.1.8M.JPN
