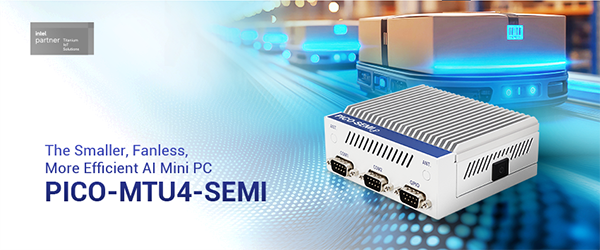

The Smaller, Fanless, More Efficient AI Mini PC

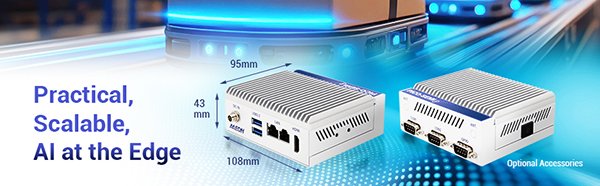

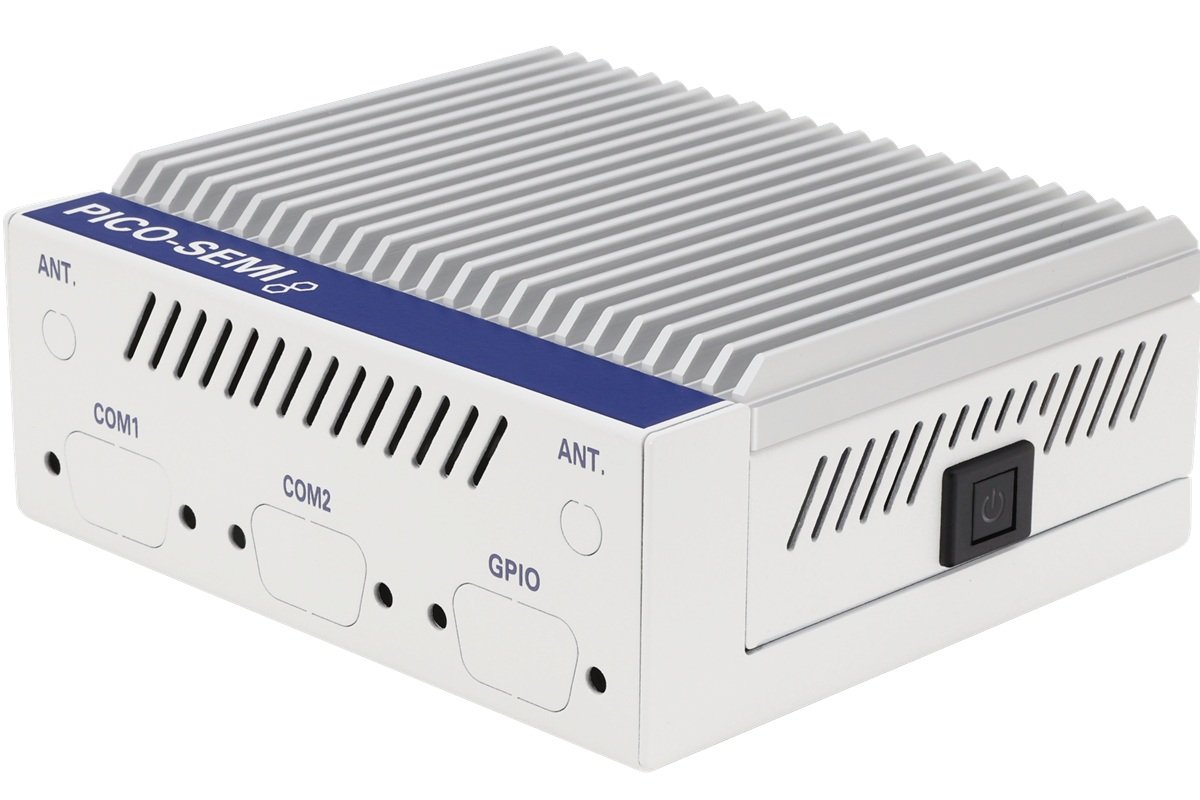

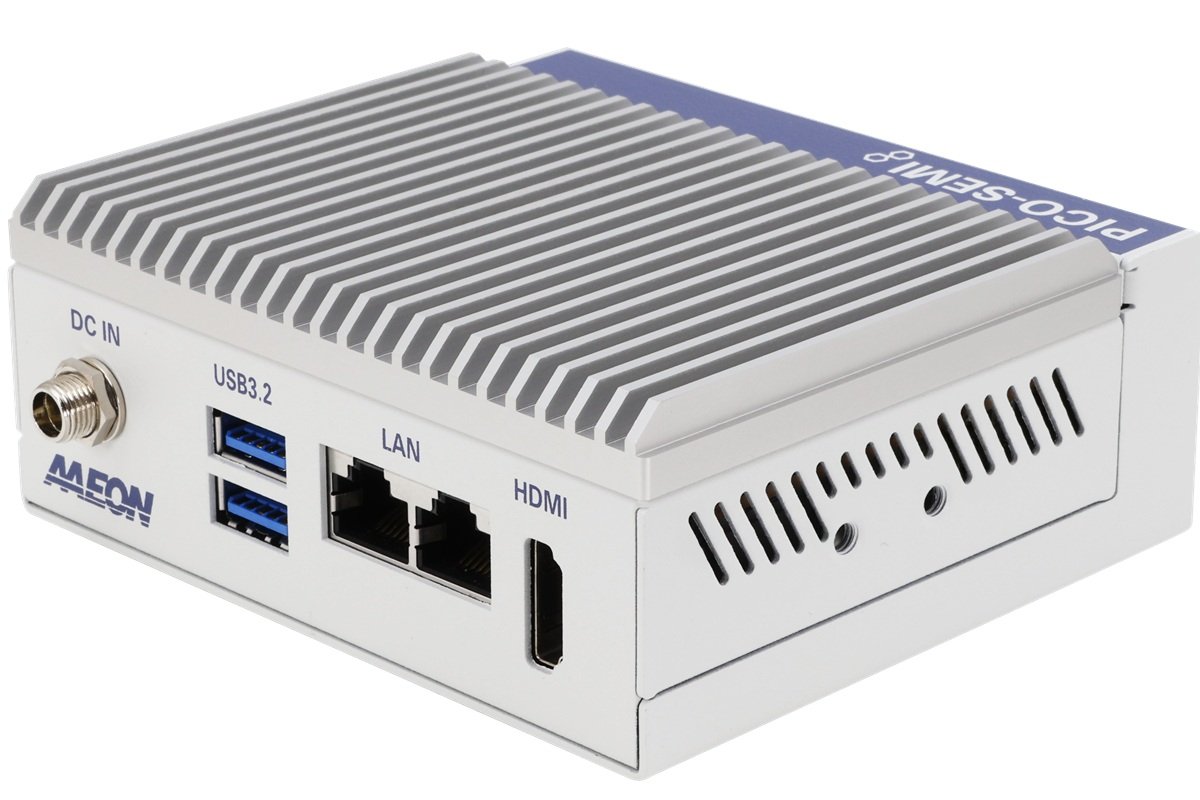

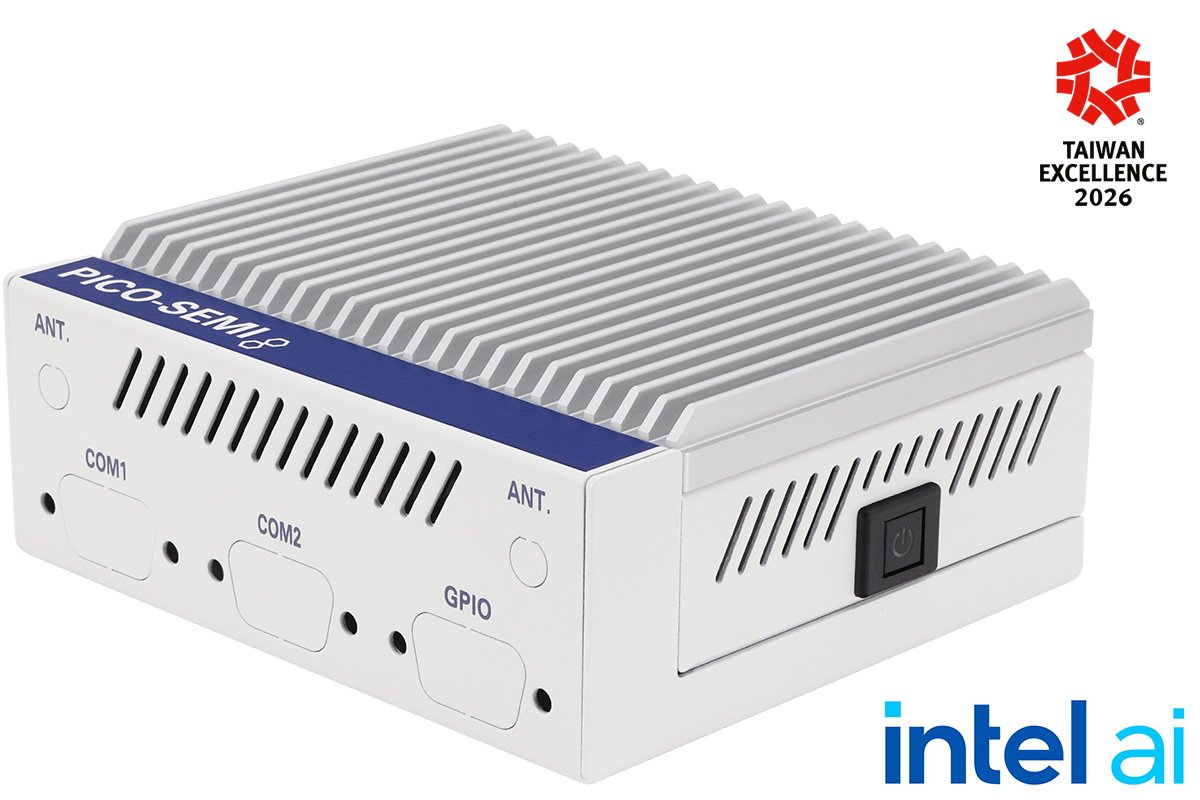

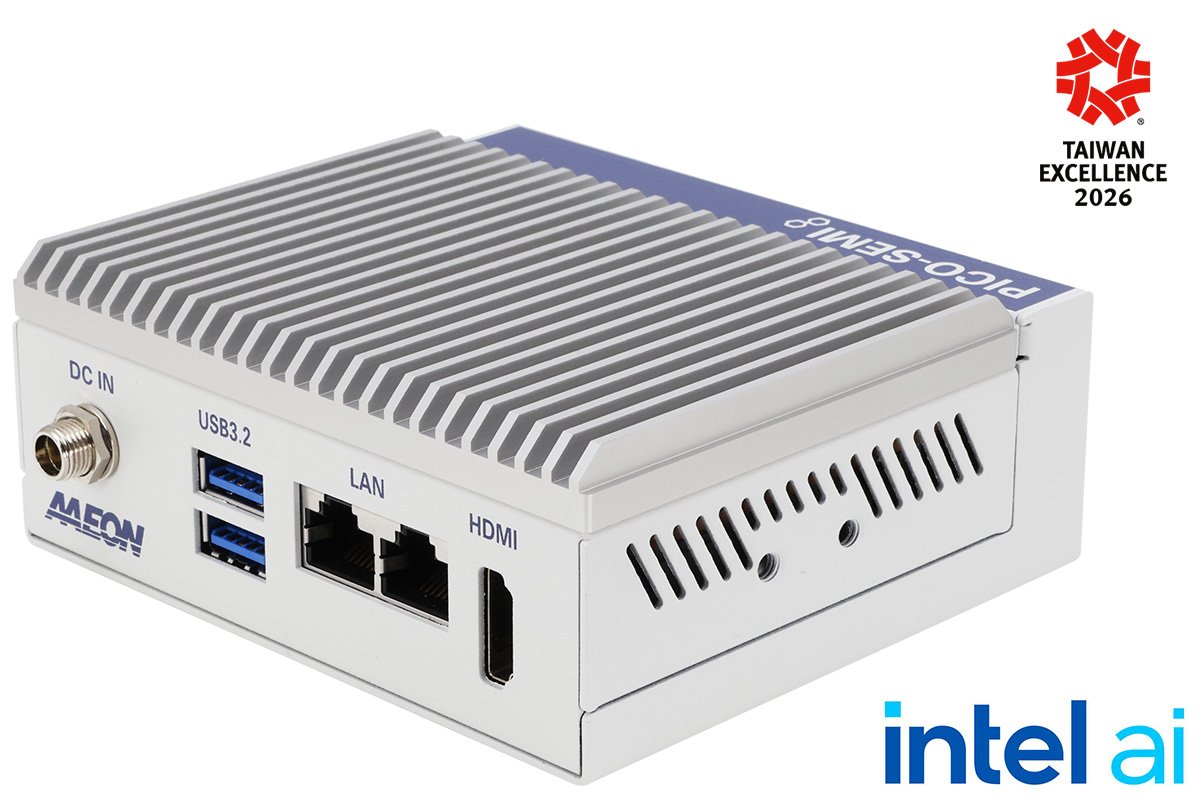

Measuring 108mm x 95mm x 43mm, weighing in at just 600g, and with the added benefit of being AAEON’s first Intel® Core™-powered PICO-SEMI system capable of fanless operation, the PICO-MTU4-SEMI is easily deployed as part of larger equipment setups or integrated as the central unit of smart robotics solutions such as AGVs, AMRs, and drones requiring minimal maintenance.

A More Efficient Multitasking Platform

With a dedicated NPU built into the PC’s Intel® Core™ Ultra foundation, the PICO-MTU4-SEMI is able to offload inferencing tasks from its CPU and GPU, granting users a lower total system power draw. This also frees up compute resources to more efficiently handle tasks such as data preprocessing, peripheral device control, and multitasking for lower overall operational latency. The PICO-MTU4-SEMI is also ErP-compliant, consuming less than 0.5W in S5 mode for operational longevity.

A More Efficient Multitasking Platform

With a dedicated NPU built into the PC’s Intel® Core™ Ultra foundation, the PICO-MTU4-SEMI is able to offload inferencing tasks from its CPU and GPU, granting users a lower total system power draw. This also frees up compute resources to more efficiently handle tasks such as data preprocessing, peripheral device control, and multitasking for lower overall operational latency. The PICO-MTU4-SEMI is also ErP-compliant, consuming less than 0.5W in S5 mode for operational longevity.

Optional Accessories

Part Number	Descrption	Qty
1702031802	Power Cord (US Type)	1
1702031803	Power Cord (Europe Type)	1
170203180E	Power Cord (Japan)	1
1255X00063	AC/DC Adapter.100-240V.150W.12V/12.5A.AC C14 DC JACK W/ Lock 180D. DELTA.DPS-150AB-15 J	1
170X001114	GPIO cable (150mm)	1
170X001117	Dual COM port cable (120mm)	1
PICO-SEMI-WMT1	PICO-MTU4-SEMI Wallmount bracket kit	1
PICO-SEMI-DIN01	Din rail kit.25mm*48.3mm	1
