Next Gen Microarchitecture for 96 TOPs of AI Performance

Available with a range of Intel® Core™ Ultra 200H and 200U Series Processors, the GENE-ARH6 offers up to 96 TOPs of AI performance, combining the hybrid AI acceleration offered by integrated Intel® Arc™ 140T GPU and Intel® AI Boost NPU. With such powerful inference capabilities in such a compact form factor, the GENE-ARH6 is the optimum choice to serve as the central component to applications ranging from advanced industrial robots to inference-based safety monitoring solutions.

Industrial by Design, Built for Purpose

In addition to its sophisticated foundation, the GENE-ARH6 is designed for reliability in demanding environments. With a wide power input range of 9V to 36V, the board is resilient in the face of power source volatility. Adding to this, the GENE-ARH6 hosts a lineup consisting of four COM headers (two RS-232/422/485, two RS-232), an 8-bit GPIO, and a choice of SMBus or I2C, enabling industrial control applications across both legacy and advanced equipment setups.

Dynamic Displays with Unmatched Quality

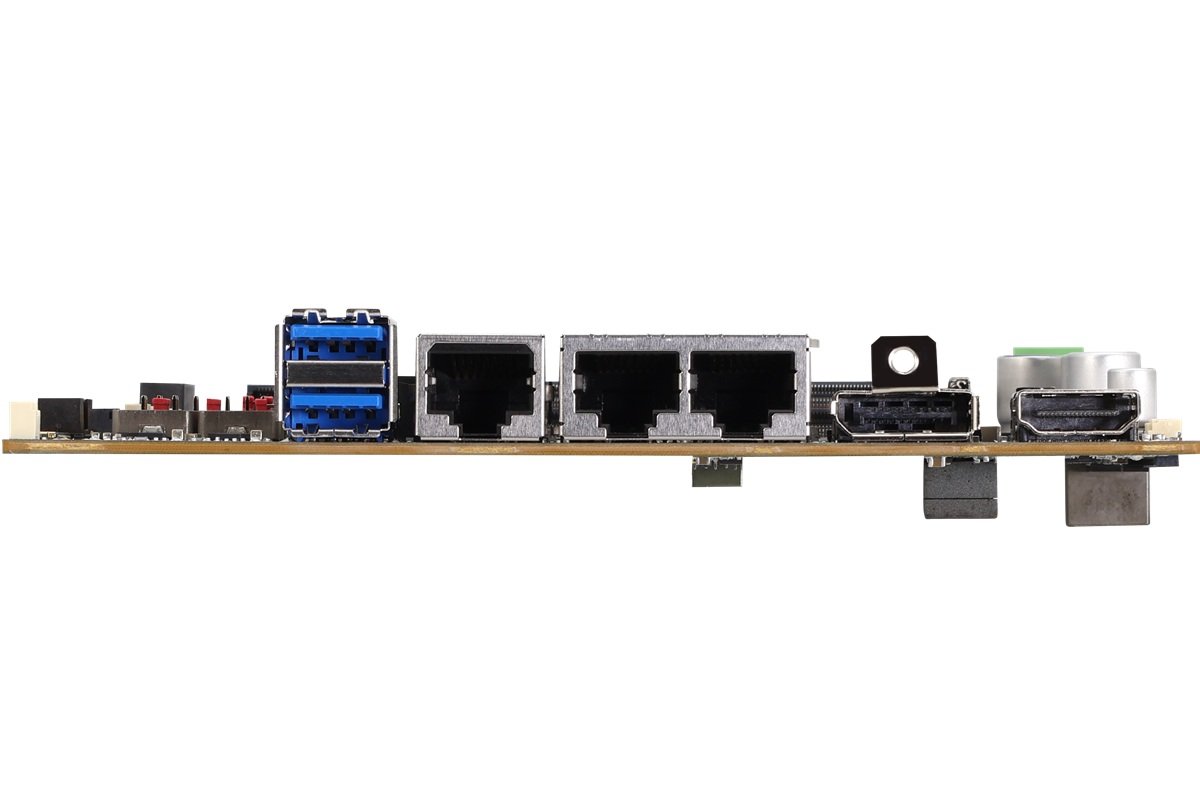

Equipped with multiple USB and Ethernet interfaces for peripheral camera installation, the GENE-ARH6 facilitates the development of AI-driven industrial safety monitoring solutions. Moreover, HDMI 2.1 and DP 2.0 ports grant users 8K display outputs, with the board’s integrated Intel® Arc™ 140T GPU providing real-time analytics at the edge. The board also hosts dual-channel LVDS and eDP 1.4b, elevating what HMI and industrial dashboards can offer.

Optional Accessories

Part Number	Descrption	Qty
GENE-MTH6-FAN01	CPU Cooler.12V.Smart FAN	1
GENE-MTH6-HSP01	Heatspreader.100729.5mm	1
PER-SB2B-A01-0001	FPC2.M.2 2280 M key x2.PCIe〔x4〕	1
1702150155	SATA HDD Power Cable, 15cm	1
170204010R	Power Cable.Double 4P , 10cm	1
170X000398	Power Cable, DC JACK, 30cm	1
170X000603	Front Panel Cable , 10cm	1
170X000156	Audio Cable, 25cm	1
1701090150	COM Port Cable, 15cm	4
1700050207	USB 2.0 Cable, 20cm	4
