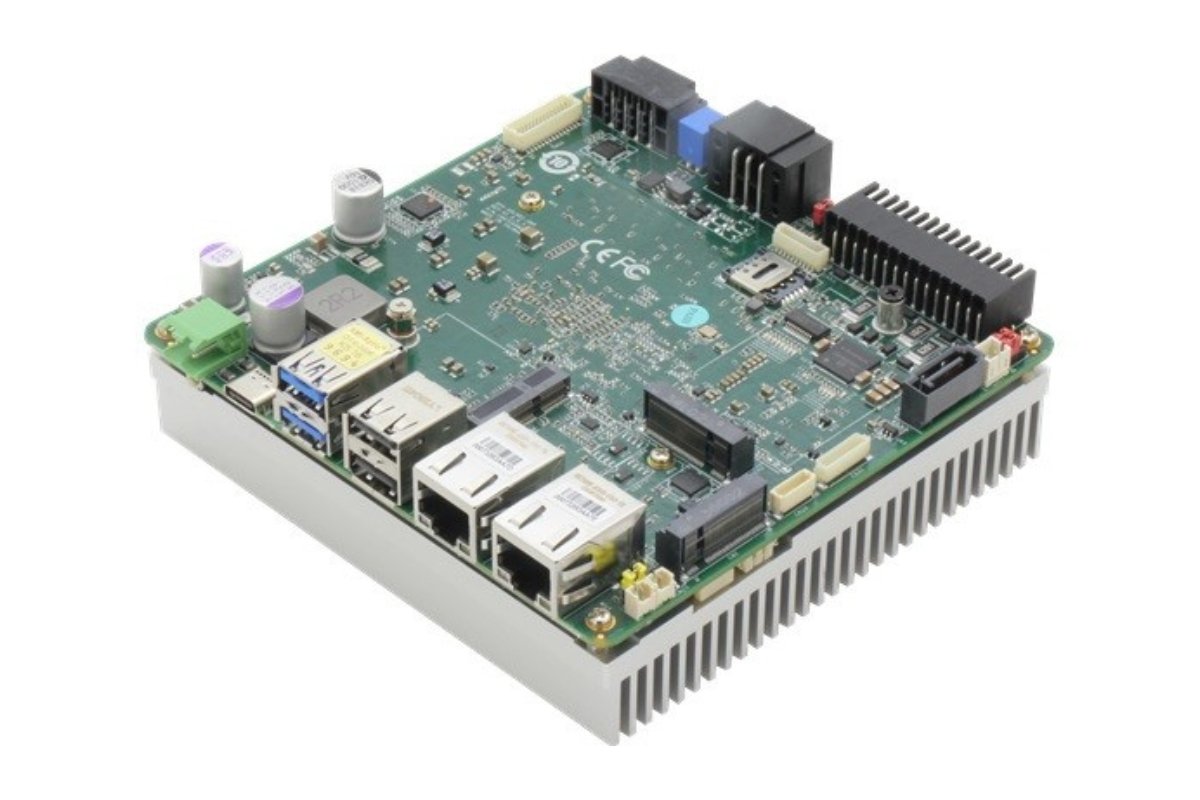

UP Xtreme 7100 – High-Performance Industrial SBC for AMR & Robotics

The UP Xtreme 7100 is a compact, industrial-grade single-board computer designed specifically for AMR, AGV, and factory automation workloads. Powered by Intel® N-Series or Intel® Core™ i3-N305 processors, it delivers strong performance within a low-power envelope while offering dual 2.5GbE, CANbus, RS-232/422/485, and a 9–36V wide-range power input. With reliability, connectivity, and real-time control built in, the UP Xtreme 7100 is engineered for next-generation autonomous robotics.

Seamless Communication, Control, and Task Execution

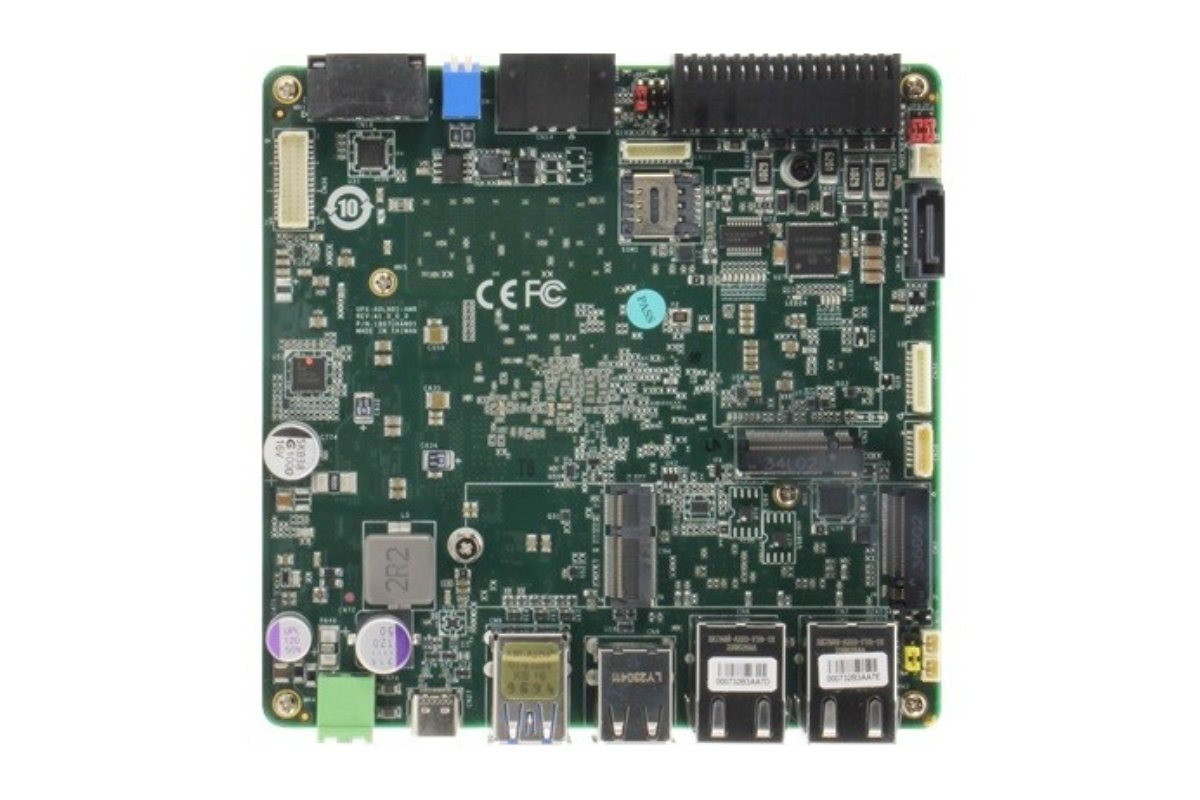

Built to facilitate communication with sensors, actuators, and other peripherals essential to robotics applications such as AMR, the UP Xtreme 7100 is equipped with a selection of terminal blocks and a 30-pin board-to-board connector, granting access to digital I/O, GPIO, and isolated RS-232/422/485 function. Further, the board’s CAN 2.0B interface, DIP switch, and LED indicators are conducive to establishing communication with other devices on the CANBus network, making the UP Xtreme 7100 not only AMR-ready, but suited to a wide variety of industrial control solutions, including programmable logic controllers (PLCs).

Advanced, Integrated Intel Processing

The UP Xtreme 7100 features SKUs with Intel® Core™ i3-N305 and Intel® Processor N97 embedded CPUs, both of which offer economical benefits in the form of low power consumption and cost-friendliness. Nonetheless, the UP Xtreme 7100 still benefits from up to 8 cores and 8 threads of processing power, enhanced by a remarkably high single-core frequency. The platform consequently provides the sensor data processing, integrated graphics, and resources for path planning and control algorithms needed to make it ideal for AMR and AGV deployment.

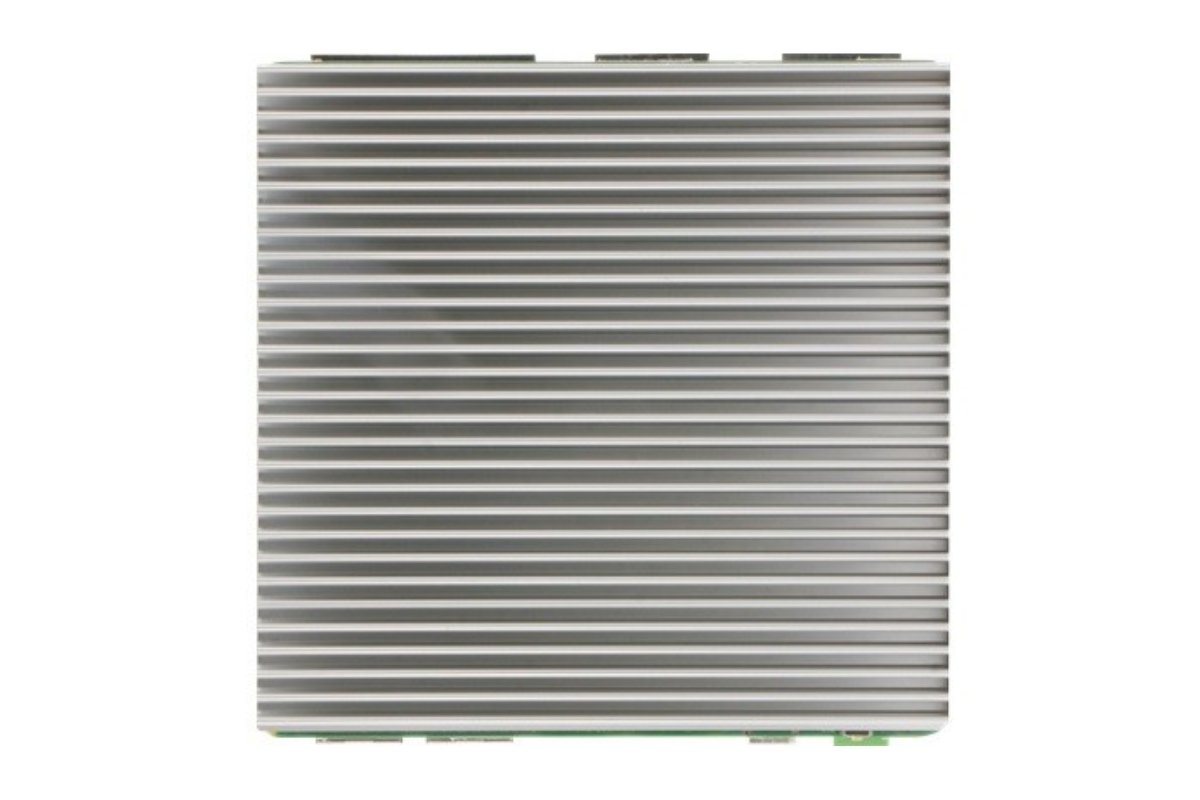

Fanless, Low-Profile, and Robust Design

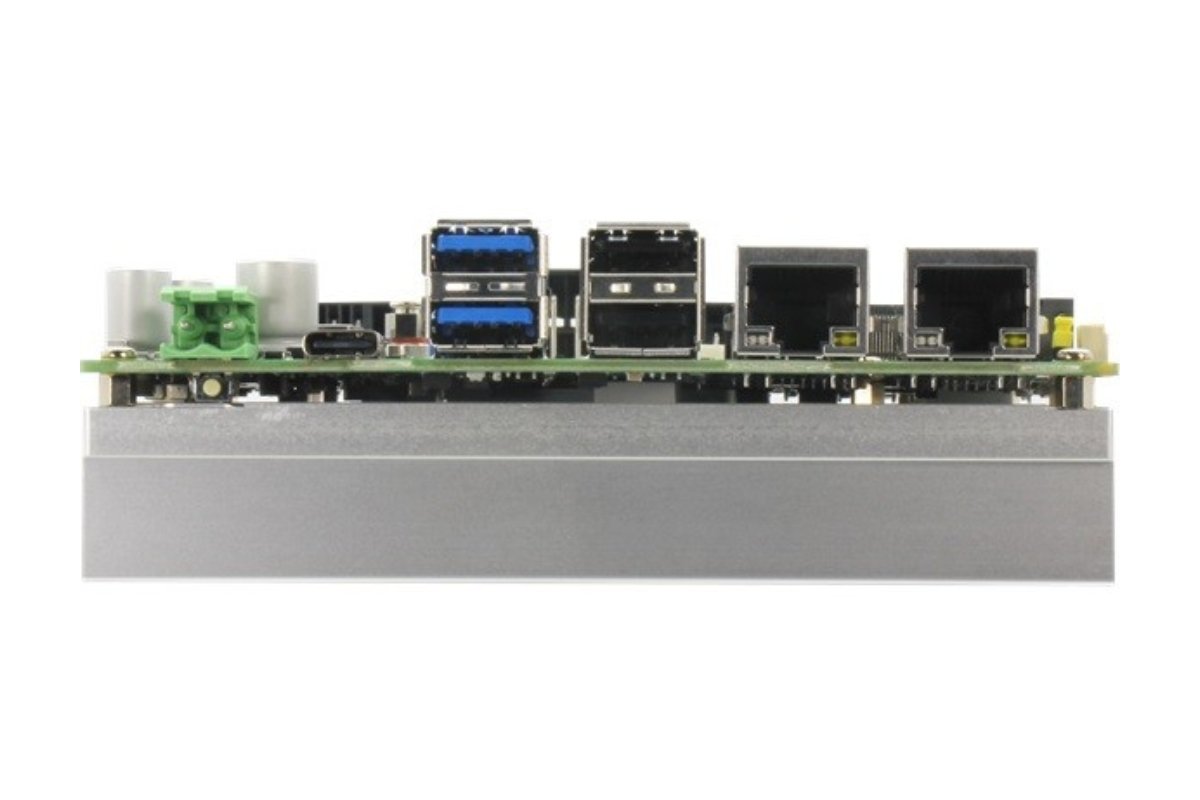

Built on a compact 120.35mm x 122.5mm form factor, the UP Xtreme 7100 is easily deployed in tight spaces, a fact made even more impressive by its fanless design. Moreover, the board is remarkably low-profile, at just 42.75mm tall. To ensure compatibility with industrial use, the board is armed with a number of rugged features, including a wide 9V to 36V power input range, surge, vibration, and shock resistance, along with lockable I/O ports to prevent key data being lost due to harsh operating environments.

✦ EDM - From AMR to PLC, the UP Xtreme 7100 is the key. >

✦ If you are interested in a system-level product to start your AGV project, please check out the UP Xtreme 7100 Edge.

✦ 🔔 Free Edge AI Toolkit — streamline object detection, benchmarking, and AI model conversion to accelerate your AI projects on UP platforms. Try Edge AI Toolkit now >

Application

• Autonomous Mobile Robot (AMR)
• Automated Guided Vehicle (AGV)
• Industrial Automation
• Programmable Logic Controllers (PLCs)
