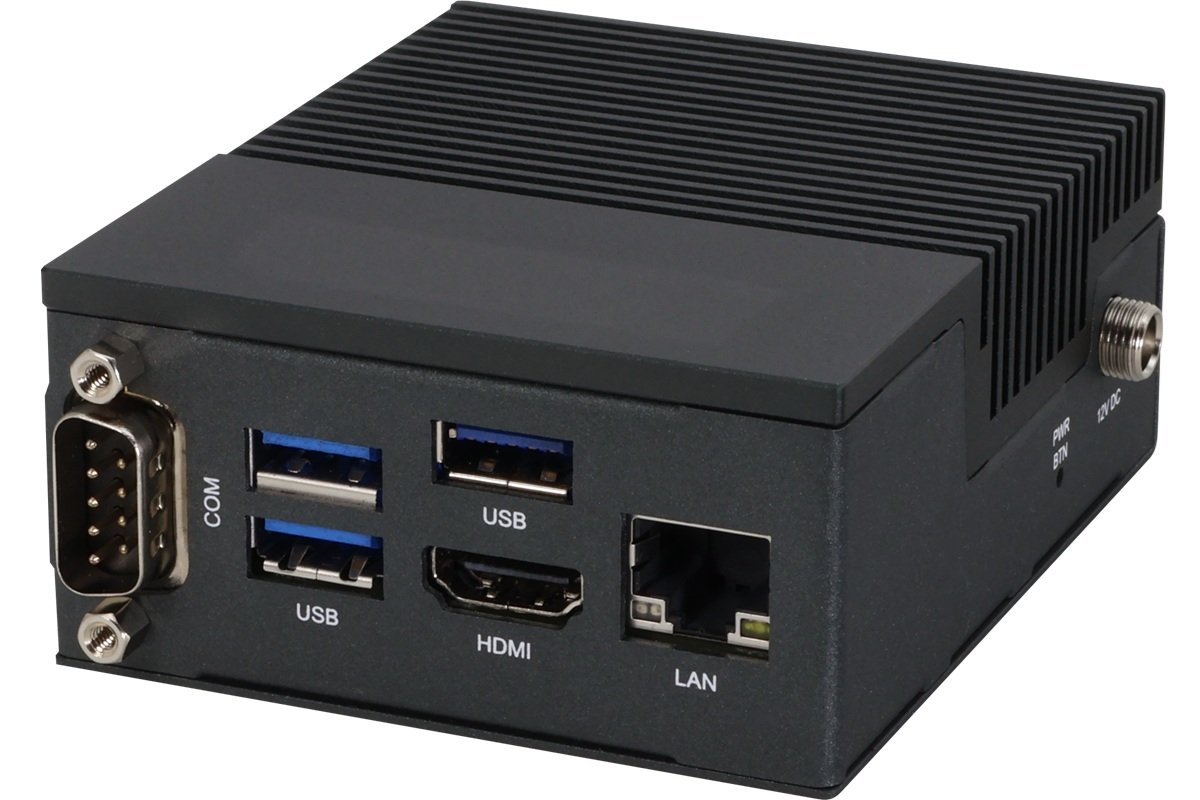

UP 710S Edge - Smallest Intel® Processor N-powered IPC

Name: UP 710S Edge | Intel® Processor N-series
Brand: AAEON Technology Inc

AAEON’s smallest Intel® Processor N-powered Mini PC with Wi-Fi support, the UP 710S Edge expands on the functionality offered by its predecessors while still achieving fanless operation with a new slimmer heatsink and internal board configuration designed for maximum airflow. Despite its size, the UP 710S Edge adds an 8-bit GPIO and a COM port for RS-232/422/485 to UP Edge Mini PC collection, expanding the toolset available to developers and raising the ceiling of what entry-level IoT gateway solutions are capable of.

Powerful Intel® Alder Lake-N Platform

Powered by Intel® N50, N97, N100, or N200 processors, the UP 710S Edge delivers efficient performance for AI workloads, machine vision, and real-time analytics at the edge—all while maintaining low power consumption.

Rich I/O Interfaces for Versatile Integration

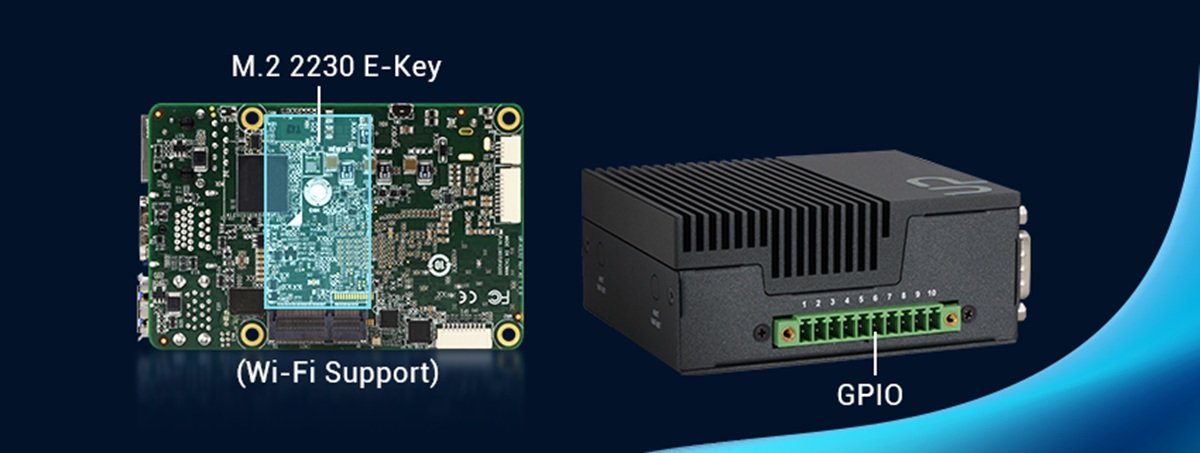

RS-232/422/485 COM port and 8-bit GPIO (configurable for PWM/I²C/SPI) for industrial device control

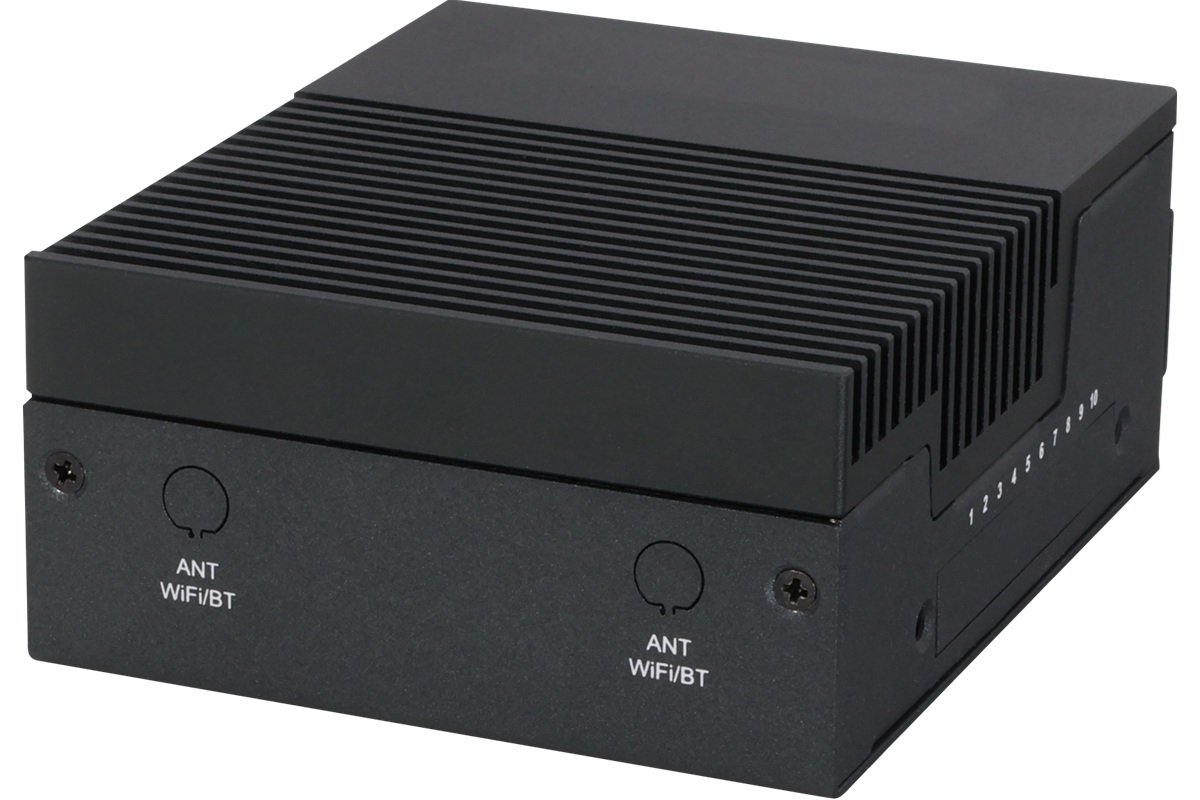

M.2 2230 E-Key slot for Wi-Fi/Bluetooth expansion
3x USB 3.2 Gen 2 ports for high-speed connectivity
HDMI 1.4b for display and vision applications
1x GbE LAN for reliable network connectivity

Compact Fanless Industrial Design

A robust, lightweight chassis (92 x 77 x 38.5 mm, approx. 300g) with passive cooling protects against dust and ensures quiet, reliable operation in harsh environments. With DIN-rail and VESA mounting options, the UP 710S Edge is easy to deploy in space-constrained industrial and commercial applications.

Edge AI Ready

Compatible with Windows 11, Ubuntu 22.04 LTS, and Yocto, the UP 710S Edge supports modern AI frameworks and can be paired with M.2-based AI modules (e.g., HAILO-8™ M.2 2280 , DeepX DX-M1 M.2 2280 ) for enhanced AI inference.

Compact Fanless Edge AI System for Industrial Applications:

Smart Factory Automation - monitor and control machinery with reliable GPIO and COM interfaces
Retail & Smart Kiosks - real-time customer behavior analysis and personalized advertising
Smart City Surveillance - multi-channel video processing for safety and traffic management
Intelligent Transportation - vehicle detection, passenger monitoring, and system control at the edge
IoT Gateways - secure data collection, preprocessing, and transmission in distributed IoT ecosystems

✦ EDM - Adding Agility to Automation - The UP 710S Edge >

✦ If you are interested in a board-level product to start your project, please check out the UP 710S >

✦ 🔔 Free Edge AI Toolkit — streamline object detection, benchmarking, and AI model conversion to accelerate your AI projects on UP platforms. Try Edge AI Toolkit now >

Optional Accessories

Part Number	Description
1255X00032	(TF)AC/DC Adapter.Input AC.100~240V.Output DC.12V.MAX 72W.6.0A.180D.W/ LOCK.EDAC. EA10681U(120)
170X000799	(TF)Power Cord. 3P. 125V. 10A. 180D. USA. 1. 8M. I-SHENG. SP305B/IS-14N SVT 18/3 60C CT-12 Black
170X000800	(TF)Power Cord. 3P. 250V. 10A. VDE. 1. 8M. I-SHENG. SP23/IS-14N H05VV-F 3G 0. 75 CT-12 Black
170X000815	(TF)Power Cord. 3P. 250V. 10A. 180D. CHINA. 1. 8M. I-SHENG. SP506A/IS-14N RVV 300/500V 3X0. 75 CT-12 Black
170X000806	(TF)Power Cord. 3P. 125V. 7A. 1. 8M. I-SHENG. U4NCB3T6B1218002. SP305B/IS-14N VCTF. Black. BSMI
170X000803	(TF)Power Cord.3P.125V/7A.PSE Certificate.1.8M.I-SHENG.U4NCB3P6C1218002.SP305B/IS-14N VCTF 0.75/3 Black 1.8M
170X000810	(TF)Power Cord.3P.250V.16A.Korea.1.8M.I-SHENG.SP23/IS-14N H05VV-F 3G 0.75 CT-12 Black
170X000805	(TF)Power Cord.3P.250V.10A.SWISS.1.8M.I-SHENG.SP-027C/IS-14N H05VV-F 3G 0.75mm CT-12 Black
9651210000	Wireless LAN Kit M.2 2230 802.11ax/ac/a/b/g/n + BT5.2,2.4G/5G/6G,with 2 sets of cable & antenna (Intel AX210)
9651885200	Wireless LAN Kit M.2 2230 802.11ax/ac/a/b/g/n + BT5.2,2T2R,with 2 sets of cable & antenna (Enli,ENL-8852CE)
170010015G	(TF)USB Cable.10P 1.0mm Housing.USB A(F). 15cm
UP-ASL02VESAKIT-A10-0001	VESA KIT for UP-EDGE-ASL02
UP-DRKIT-A10-0001	DIN Rail KIT for UP Series
