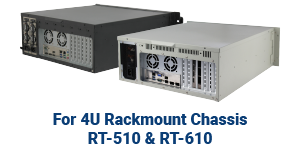

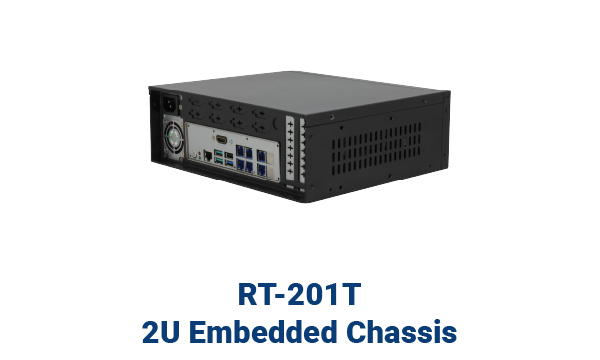

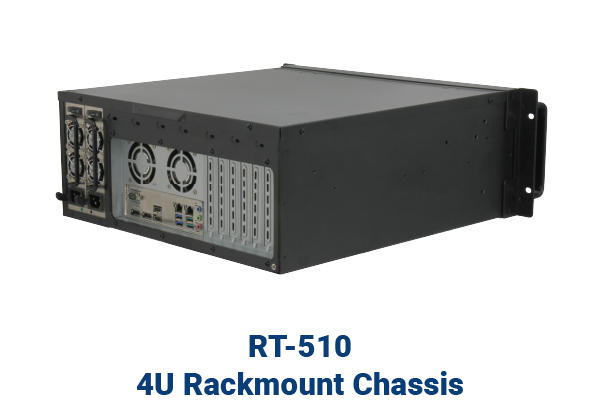

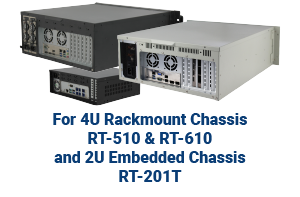

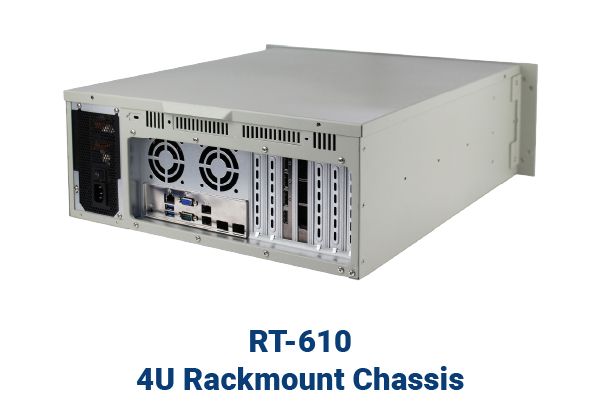

| Model | RT-510 | RT-610 | RT-201T |
| Hardware Specifications | This item depends on motherboard selection, see ordering information | This item depends on motherboard selection, see ordering information | This item depends on motherboard selection, see ordering information |
| Front Panel | Power ON/OFF Switch x 1 Reset Button x 1 USB 2.0 x 2 LED Indicators: Power LED, HDD LED | Power ON/OFF Switch x 1 Reset Button x 1 USB 2.0 x 2 LED Indicators: Power LED, HDD LED, Power Status LED*8 | Power ON/OFF Switch x 1 USB 2.0 x 2 LED Indicators: Power LED, HDD LED |
| System Fan | Front: 120mm x 1 (T=25mm) Back: 60mm x 2 | 2 x 120mm fans on front | Front: 8mm x 1 |
| Drive Bays : Special Knockable-Out Design | 3.5” x 4 + 2.5” x 1 (Internal) or 5.25” x 2 (External) + 3.5” x 1, 2.5” x 1 (Internal) | 1 x 3.5" HDD/FDD drive bay, 3 x 5.25" bays | 2.5” HDD/SSD Bay x 2 (Internal) |
| Color | Black | White | Black |
| Backplane | Support 7 x COM port Full height expansion PCIe slot x 7 | Support 1 x COM port Full height expansion PCIe slot x 7 | COM x 8, Low-Profile PCI/PCIe x 2 |
| Dimensions (W x D x H) | 427mm x 450mm x 177mm | 427mm x 480mm x 177mm | 260mm x 230mm x 89mm |
| Gross Weight | Around 12 kgs | Around 12 kgs | Around 2.85 kg |
| Power Requirement | ATX power supply or Mini-Redundant power supply (Optional) | Standard ATX power supply or redundant power supply | Flex ATX power supply AC Input:100V ~ 264V DC Output: Total 400W Max |
| Operating Temperature | 32°F ~ 113°F (0°C ~ 45°C) | 32°F ~ 113°F (0°C ~ 45°C) | 32°F ~ 113°F (0°C ~ 45°C) |
| Storage Temperature | -49°F ~ 176°F (-45°C ~ 80°C) | -49°F ~ 176°F (-45°C ~ 80°C) | -49°F ~ 176°F (-45°C ~ 80°C) |
| Storage Humidity | 0%~90%RH, non-condensing | 0%~90%RH, non-condensing | 0%~90%RH, non-condensing |
| Available Country | India | India | APAC & Emerging Countries |
