- AAEON UPPC
All-in-One UP Panel PC for Rugged Industrial Applications
DURABLE ｜ RELIABLE ｜ FLEXIBLE
All-in-One UP Panel PC for Rugged Industrial Applications
▪︎ DURABLE
▪︎ RELIABLE
▪︎ FLEXIBLE
Slim Type UP Panel PC
AAEON’s Fanless UP Panel PC is an all-in-one industrial computer with an integrated touchscreen, combining compact design with robust performance. Built for harsh environments, it delivers reliable operation, flexible deployment, and seamless integration for a wide range of demanding industrial and automation applications.
Slim Type UP Panel PC
AAEON’s Fanless UP Panel PC is an all-in-one industrial computer with an integrated touchscreen, combining compact design with robust performance. Built for harsh environments, it delivers reliable operation, flexible deployment, and seamless integration for a wide range of demanding industrial and automation applications.
Rugged IP65 Front Panel for Demanding Environments
- Resistant to dust, water spray, and environmental contaminants.
- Suitable for manufacturing, energy, healthcare, and transportation.
- Ensures long‑term durability in harsh or hygiene‑critical settings.
High‑Performance Computing with Latest Intel CPUs
- Supports modern Intel processors, including Intel 10th Gen CPUs.
- Smooth operation for automation, data processing, and HMI.
- Strong performance for multitasking and industrial workloads.
Versatile Display & I/O Options for Easy Integration
- Crystal‑clear displays with multi‑touch support.
- Dynamic I/O for sensors, controllers, and networks.
- Designed for seamless deployment across diverse systems.
Display BOX
■ 15.6" TFT LCD, 1920 (RGB) x 1080
■ 350 cd/m2 (TYP) with Dimming Function
■ P-capacitive Touch with Optical Bonding
■ "Glass-Glass" Structure for Ultra-long Touch Life
■ 7H Surface Hardness & Anti-fingerprint Coating

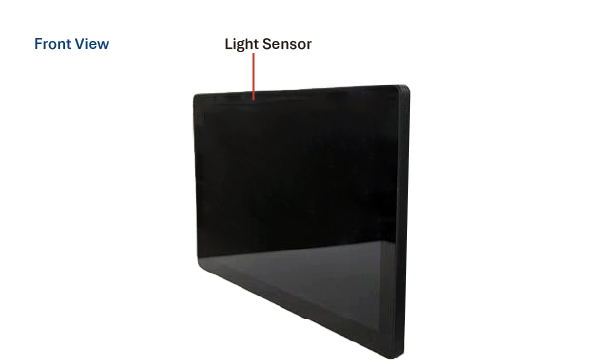

■ Support Light Sensor/G-sensor
■ Front Side IP65 with Full Metal Housing
CPU BOX
■ Intel® Core™ i3-N305/N97 Processors
■ SO-DIMM DDR5, Onboard eMMC

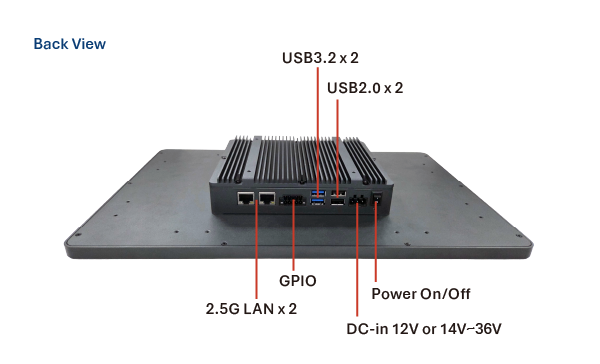

■ USB3.2 x 2, USB2.0 x 2, GbE LAN x 2

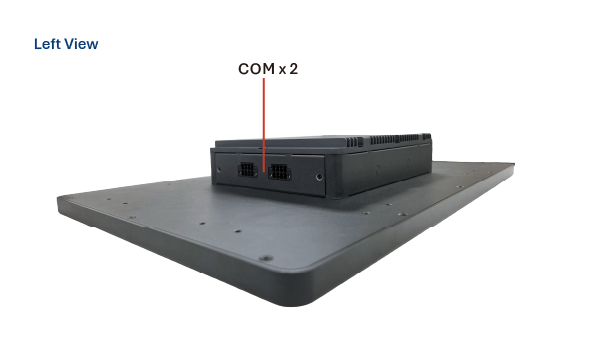

■ RS-232/422/485 with Phoenix Connector
■ 8-bit GPIO with Phoenix Connector
■ M.2 2280 M-Key x 2, M.2 2230 E-Key/M.2 3052 B-Key x 1
■ Support TPM2.0
■ Intel® Core™ i3-N305/N97 Processors
■ SO-DIMM DDR5, Onboard eMMC
■ USB3.2 x 2, USB2.0 x 2, GbE LAN x 2
■ RS-232/422/485 with Phoenix Connector
■ 8-bit GPIO with Phoenix Connector
■ M.2 2280 M-Key x 2, M.2 2230 E-Key/M.2 3052 B-Key x 1
■ Support TPM2.0
Mechanical
■ Fanless Design
■ Slim design 48.4mm High
■ Mounting Kit Support
■ 12V~36V DC Input
■ 0ºC~50ºC (32ºF~122ºF)
