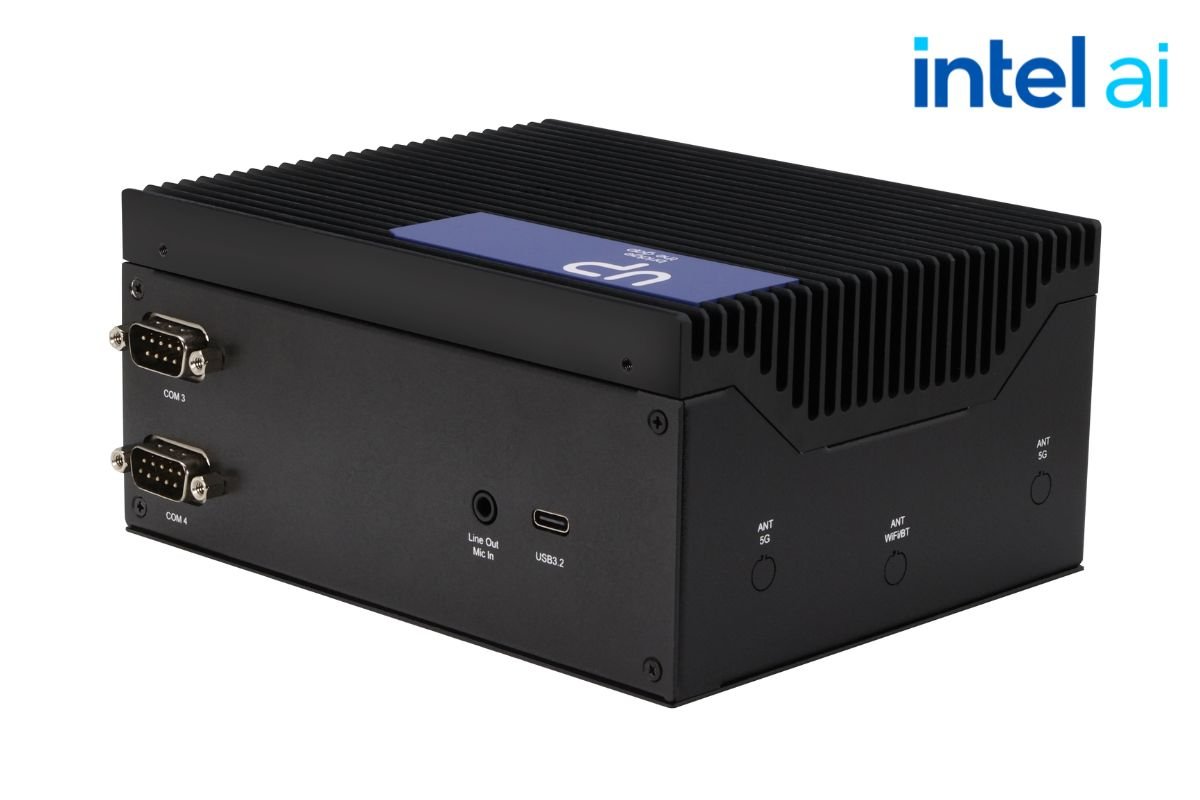

UP-Xtreme-i14-Edge_Front

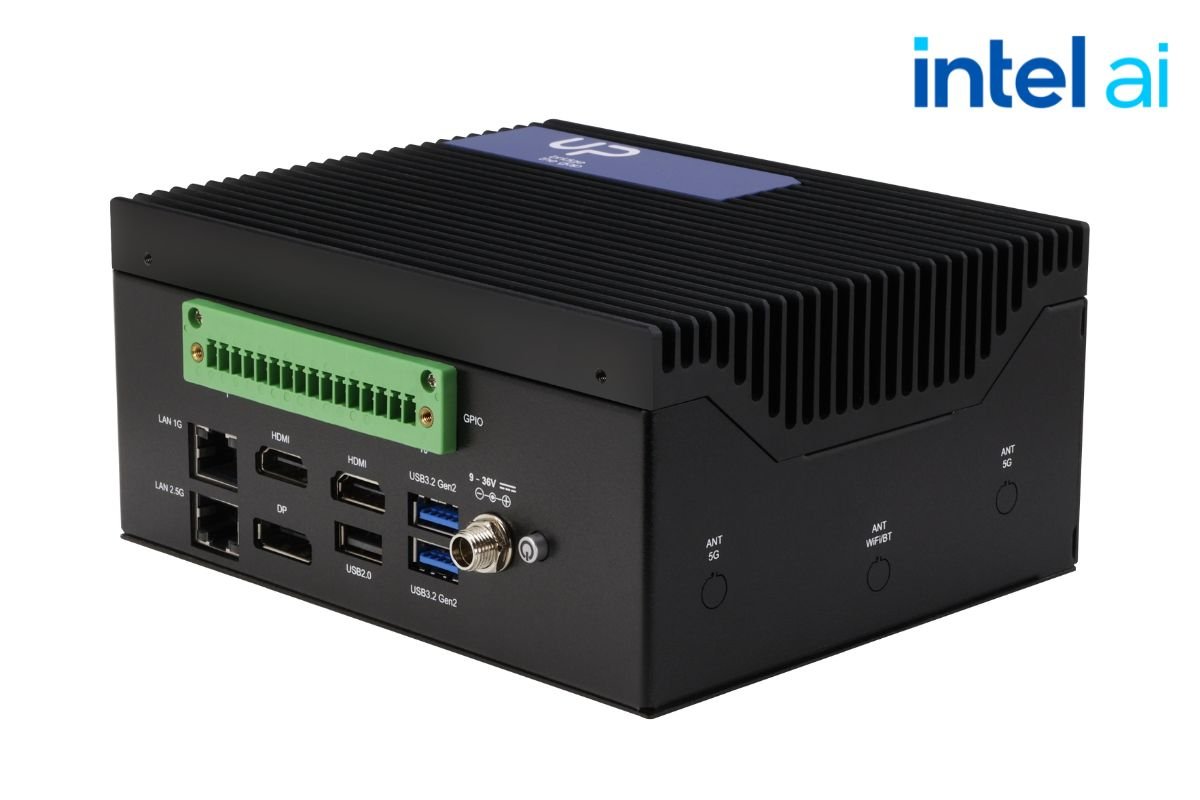

UP-Xtreme-i14-Edge_Back

UP Xtreme i14 Edge - The Ultra-Advanced Mini AI PC

The ultimate industrial Mini PC, the new UP Xtreme i14 Edge elevates development potential across industries, combining Intel® Core™ Ultra power-efficiency, faster communication interfaces, and Intel® Arc™ graphics technology into one compact system. Streamline smart city initiatives, deploy cutting-edge computer vision, or accelerate automated processes with AI-driven insights, all with the most advanced UP Mini PC ever.

The Master Key to the Ultra-Smart City

The UP Xtreme i14 Edge harnesses high-speed data processing, native AI acceleration, and edge computing capabilities through the trifecta of its Intel® Core™ Ultra CPU, LPDDR5 system memory, and Intel® Arc™ graphics. The system can therefore handle real-time video processing from multiple peripherals while maintaining wireless connectivity with control centers through 5G and Wi-Fi support, making it ideal for bringing AI-assisted decision making to settings like parking lots, transport hubs, and commercial buildings.

Unlocking Retail’s Computer Vision Potential

Dual HDMI 2.1 with Fixed Rate Link (FRL), DP 2.1, and DP 1.4 via USB Type-C grant the UP Xtreme i14 Edge high-resolution, real-time video output with which to channel its graphics capabilities. Further, the system hosts multiple USB interfaces for high-resolution camera installation alongside IP camera support through dual LAN ports, making it a practical device for foot traffic analysis and Digital Out-of-Home (DOOH) advertising in retail environments.

Bringing Industrial Control to the Edge

For industrial control solutions that go beyond the capabilities of traditional PLCs, the UP Xtreme i14 Edge combines the versatility of its industrial communication support with Ethernet supporting Time-Sensitive Networking (TSN). Sensor and actuator data can be transmitted faster to provide AI-driven insights, while instructions can be executed with minimal latency based on the platform’s GPIO, making the UP Xtreme i14 Edge an incredibly effective tool for the remote monitoring and control of industrial setups.

Accessories

Part NumberDescription
1255X00071(TF)AC/DC Adapter.Input 100V~240V.output DC 19V.120W.6.32A.DC JACK w/Lock.FSP.FSP120- ABAN3/9NA1208548
170203180JPower Cord for UK
170X000799Power Cord for USA
170X000800Power Cord for EU
170X000815Power Cord for China
170X000806Power Cord for Taiwan
170X000803Power Cord for Japan
170X000810Power Cord for South Korea
170X000805Power Cord for Switzerland
1702150155Power Cable.15P SATA(F).2P 2.0mm, Housing(PH).15cm
1700070200SATA CABLE.7P 180D(F) w/lock.to 7P 90D(F) w/o, lock SATA.20cm
9651210000Wireless LAN Kit M.2 2230 802.11ac/a/b/g/n + BT5.2,2.4G/5G/6G,with 2 sets of cable & antenna (Intel AX210)
UPX-M2THERMAL-A10-0002M.2 2280 IO side thermal Kit for UPX-EDGE-ADLP01 / UPX-EDGE-MTL01
  • An additional thermal kit is required when SSD or 5G module is installed.
  • SATA cable and SATA power cable is required when using a SATA SSD.
