Modular Type A & Type B MXM GPU Compatibility

Compatible with both MXM 3.1 Type A and Type B GPU cards, the MEX-BTS grants users full freedom to tailor setups to handle the workloads their projects demand. From running power-efficient, low-latency inference on multiple video streams with MXM Type A modules all the way to advanced multimodal AI and 3D imaging models for healthcare imaging with the NVIDIA RTX™ 5000 Ada, the MEX-BTS truly can scale AI performance across vertical markets.

Four Generations of Intel Core Power

Support for over 30 CPUs from across the 12th, 13th, and 14th Gen Intel® Core™ and Series 2 (formerly Bartlett Lake) ranges, the MEX-BTS is a modular powerhouse, giving integrators the room needed to scale industrial workstation deployments to new heights. Adding to this, the system is compatible with Intel® R680E, Q670E, and H610E chipsets, opening up high-end performance features such as ECC support and more intensive computing task execution.

Compact Footprint, Enormous Impact

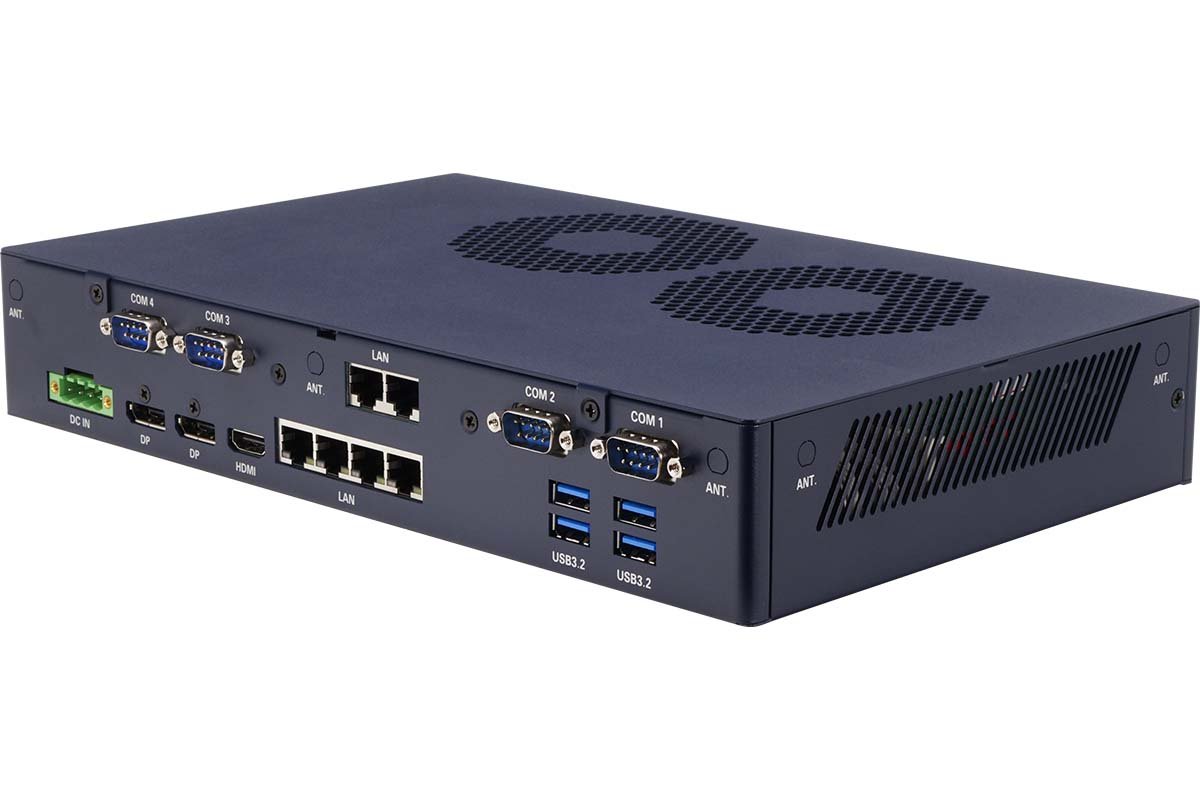

At just 295mm x 186mm x 50mm, the MEX-BTS is designed to be slim and easily deployed in space-constrained setups. Despite this, the system hosts an extraordinary I/O with up to six LAN, four COM, and an array of USB ports with which to integrate peripheral cameras and sensors. As such, users can fully leverage the system’s supported GPUs to run simultaneous inference on up to eight video streams, reaching new levels of performance across healthcare imaging, smart city, and industrial machine vision.
